UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers

Journal article

Andrea Mantelli, Alessia Romani, Raffaella Suriano*, Marco Diani, Marcello Colledani, Essi Sarlin, Stefano Turri, Marinella Levi
Polymers, vol. 13(5), 2021 Feb, p. 726

DOI: 10.3390/polym13050726

View PDF DOI LINK Google Scholar

Cite

APA Click to copy
Mantelli, A., Romani, A., Suriano*, R., Diani, M., Colledani, M., Sarlin, E., … Levi, M. (2021). UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers. Polymers, 13(5), 726. https://doi.org/10.3390/polym13050726

Chicago/Turabian Click to copy
Mantelli, Andrea, Alessia Romani, Raffaella Suriano*, Marco Diani, Marcello Colledani, Essi Sarlin, Stefano Turri, and Marinella Levi. “UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers.” Polymers 13, no. 5 (February 2021): 726.

MLA Click to copy
Mantelli, Andrea, et al. “UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers.” Polymers, vol. 13, no. 5, Feb. 2021, p. 726, doi:10.3390/polym13050726.

BibTeX Click to copy

@article{andrea2021a,
  title = {UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers},
  year = {2021},
  month = feb,
  issue = {5},
  journal = {Polymers},
  pages = {726},
  volume = {13},
  doi = {10.3390/polym13050726},
  author = {Mantelli, Andrea and Romani, Alessia and Suriano*, Raffaella and Diani, Marco and Colledani, Marcello and Sarlin, Essi and Turri, Stefano and Levi, Marinella},
  month_numeric = {2}
}

Abstract

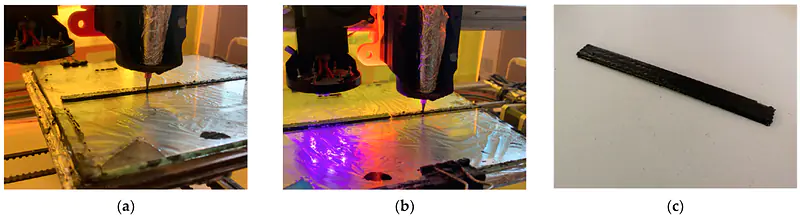

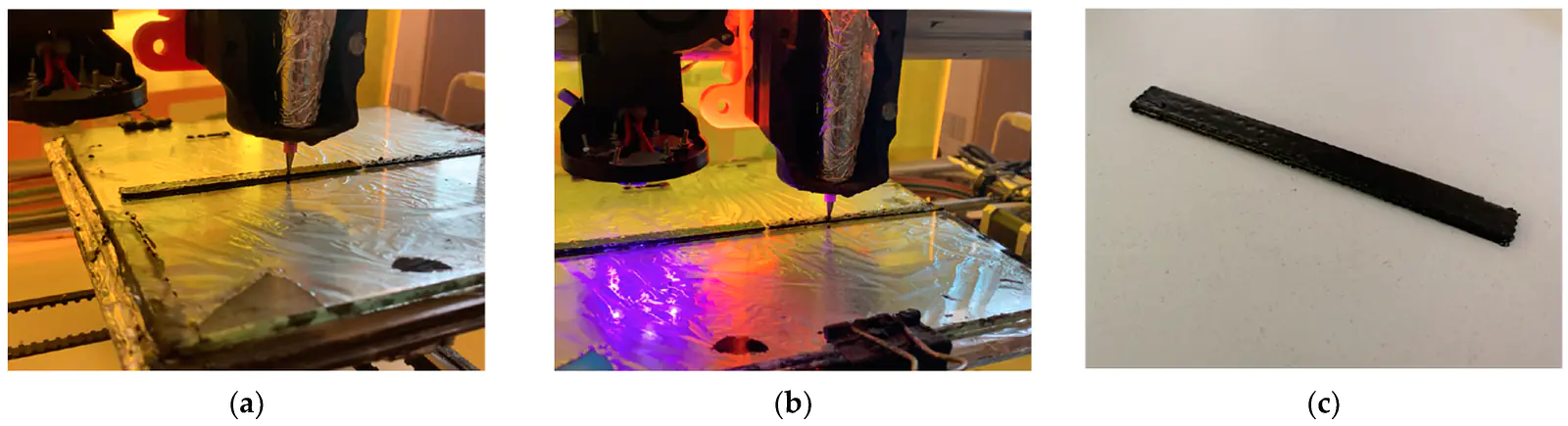

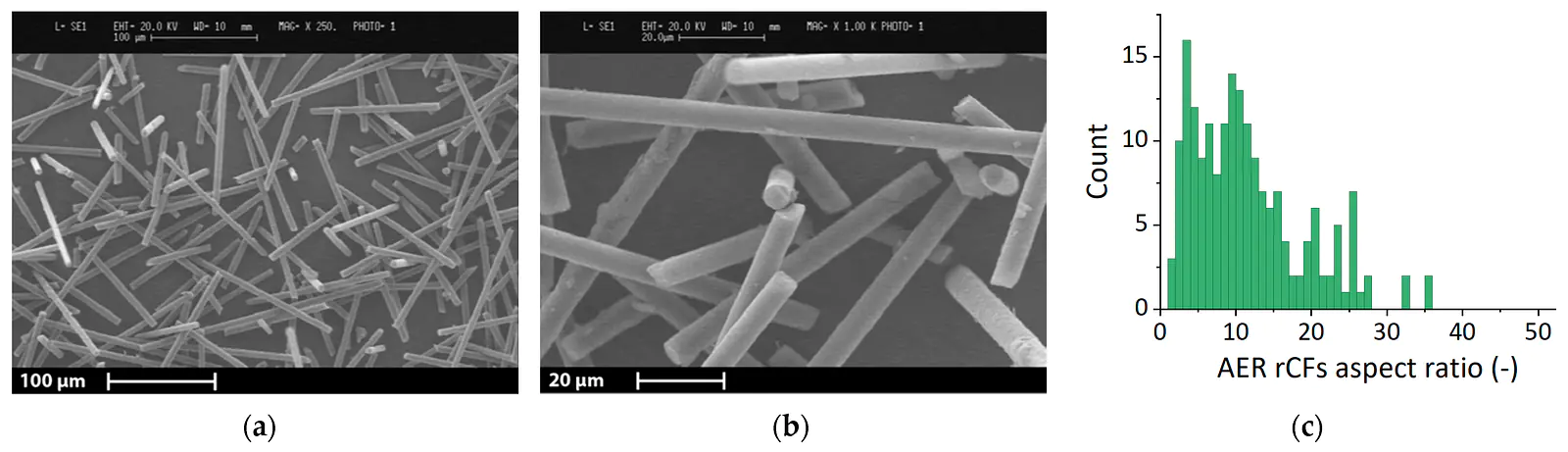

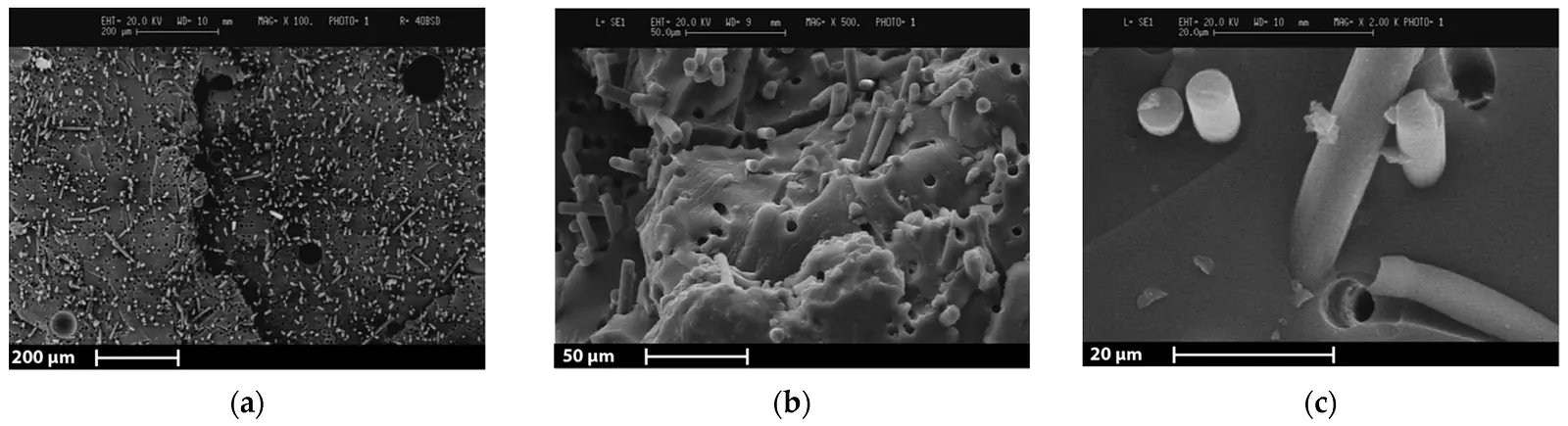

Despite the growing global interest in 3D printed carbon fiber reinforced polymers, most of the applications are still limited to high-performance sectors due to the low effectiveness–cost ratio of virgin carbon fibers. However, the use of recycled carbon fibers in 3D printing is almost unexplored, especially for thermoset-based composites. This paper aims to demonstrate the feasibility of recycled carbon fibers 3D printing via UV-assisted direct ink writing. Pyrolyzed recycled carbon fibers with a sizing treatment were firstly shredded to be used as a reinforcement of a thermally and photo-curable acrylic resin. UV-differential scanning calorimetry analyses were then performed to define the material crosslinking of the 3D printable ink. Because of the poor UV reactivity of the resin loaded with carbon fibers, a rheology modifier was added to guarantee shape retention after 3D printing. Thanks to a customized 3D printer based on a commercial apparatus, a batch of specimens was successfully 3D printed. According to the tensile tests and Scanning Electron Microscopy analysis, the material shows good mechanical properties and the absence of layer marks related to the 3D printing. These results will, therefore, pave the way for the use of 3D printed recycled carbon fiber reinforced polymers in new fields of application. 1

Keywords

Polymer-matrix composites (PMCs) // crosslinking // resins // additive manufacturing // recycling // carbon fibers // rheology // mechanical testing

Resources and links

📑 Full text (publisher version) 2
📊 Test Dataset (Excel Spreadsheet) 3

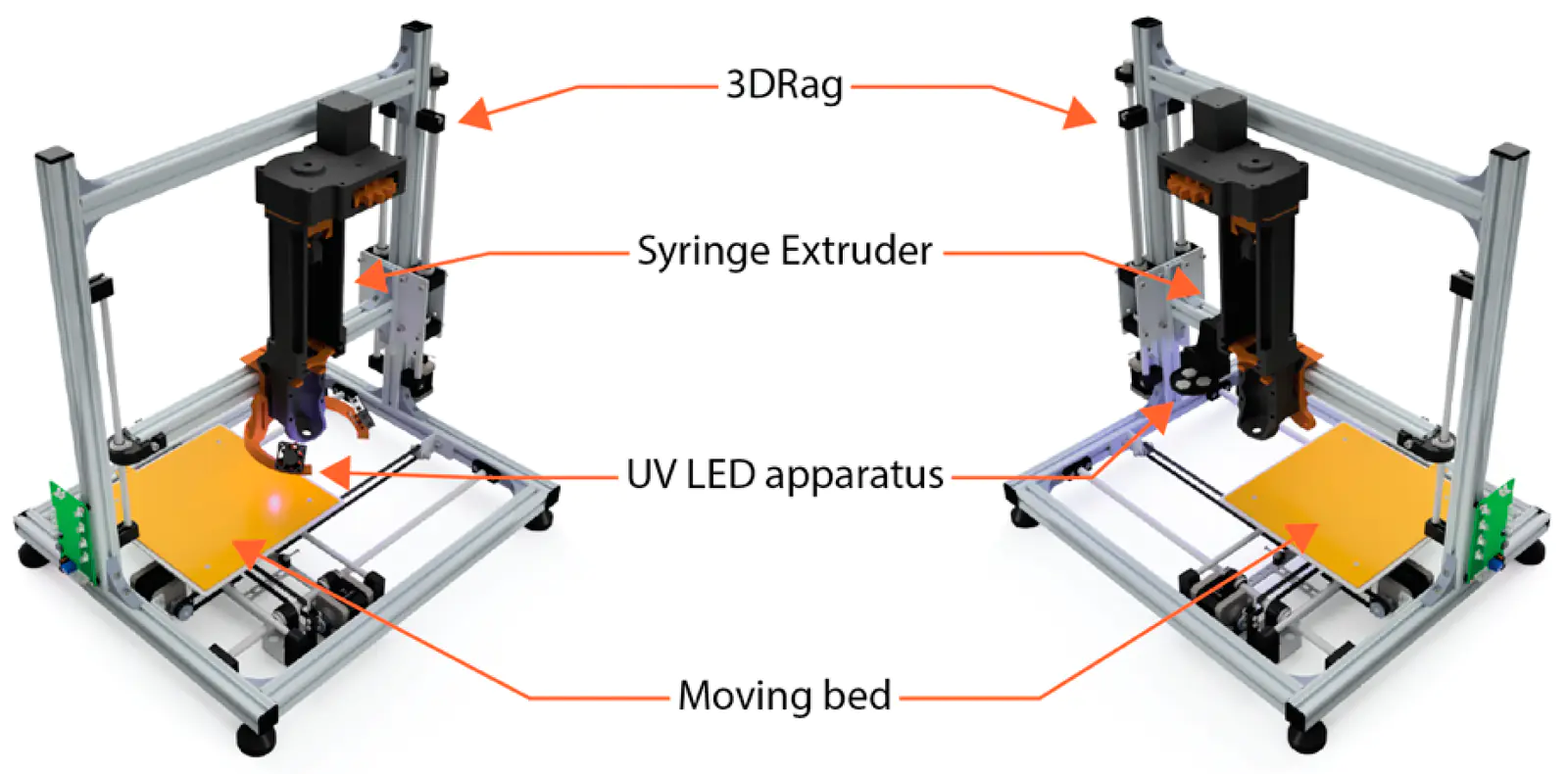

🛠️ Zenodo (Syringe extruder) 4
🛠️ Zenodo (3Drag printer firmware) 5
🛠️ Zenodo (UV curing addon) 6

Mantelli, A., Romani, A., Suriano, R., Diani, M., Colledani, M., Sarlin, E., Turri, S., and Levi, M., 2021. UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers. Polymers, Vol 13(5), pp. 726. DOI: 10.3390/polym13050726 ↩
Mantelli, A., Romani, A., Suriano, R., Diani, M., Colledani, M., Sarlin, E., Turri, S., and Levi, M., 2021. UV-Assisted 3D Printing of Polymer Composites from Thermally and Mechanically Recycled Carbon Fibers. Polymers, Vol 13(5), pp. 726. DOI: 10.3390/polym13050726 ↩
Mantelli, A. 2021. Dataset_A.Mantelli_2021_Polymers. Dataset Repository. Available at Zenodo.org. DOI: 10.5281/zenodo.11235632 ↩
Mantelli, A., 2020. Syringe extruder for 3Drag printer. Project repository. Available at Zenodo.org. DOI: 10.5281/zenodo.4295839 ↩
Mantelli, A., 2020. 3Drag printer custom firmware for Liquid Deposition Modeling mode. Project repository. Available at Zenodo.org. DOI: 10.5281/zenodo.4438495 ↩
Mantelli, A., 2020. 3Drag UV curing addon. Project repository. Available at Zenodo.org. DOI: 10.5281/zenodo.4298908 ↩
